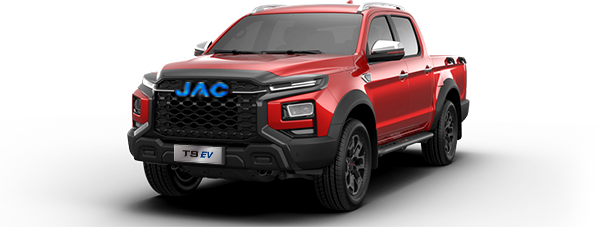

JAC T9 EV Pickups
Born to Explore!
Basic
Information
Information
- Fuel Type
- Battery Type
- Cabin
- EV
- LFP
- Double Cabin
Dimension
Overall Length x Width x Height（mm）
5330*1965*1920
Cargo Box Length x Width x Height（mm）
1520*1590*470
Wheelbase(mm)
3110
GVW (kg)
3260
Curb Weight(kg)
2350
Payload（kg）
910
Mini Ground Clearance（mm）
205
Min Turing Radius（m）
6.6
Approach / Departure Angle
27/21
Powertrain Performance
Drive Mode
4×4
Battery Brand
CATL
Battery Capacity（kWh）
88.02
WLTP Range（km）
330
NEDC Range（km）
371
Charging Port Type
CCS2
DC Charging time（h）15%-100%
1.25
AC Charging time（h）15%-100%
8.3
Front Driving Motor Peak Power（kW）
70
Front Driving Motor Peak Torque（Nm）
176
Rear Driving Motor Peak Power（kW）
150
Rear Driving Motor Peak Torque（Nm）
340
Max Speed（km/h）
140
Max Gradeability（%）
30
Chassis & Steering
Double Wishbone Independent Suspension with Coil Spring
Non-independent Leaf Spring Rigid Axle Rear Suspension
Non-independent multi-link rigid axle rear suspension
Rear Axle Electronic Differential Lock
Electronic Hydraulic Power Steering
Electric Four-wheel Drive System
Wheel & Brake
Front/Rear Brake
Disc/Disc
Electronic Parking Brake
Auto Hold
Tire Size
265/60R18
Wheel Tread（HT）
Wheel Tread（AT）
Aluminium Alloy Rrim
Spare Tire with Steel Rim
Spare Tire Type
265/60R18
Safety Configurations
Anti-lock Braking System (ABS)
Electronic Brake Force Distribution (EBD)
Brake Override System (BOS)
Hill-start Hold Control (HHC)
Hill Descent Control (HDC)
Hydraulic Brake Assist (HBA)
Traction Control System (TCS)
Vehicle Dynamics Control (VDC)
Electronic Stability Control (ESC)
Lane Departure Warning (LDW)
Lane Keeping Assist (LKA)
Emergency Lane Keeping (ELK)
Blind Spot Detection (BSD)
Lane Change Assist (LCA)
Rear Cross Traffic Alert（RCTA)
Forward Collision Warning (FCW)
Rear Collision Warning (RCW)
Door Open Warning (DOW)
Speed Limit Assist (SLA)
Traffic Sign Recognition (TSR)
Traffic Jam Assistant (TJA)
Driver Monitor System (DMS)
Autonomous Emergency Braking (AEB)
Rear-autonomous Emergency Braking(R-AEB)
Adaptive Cruise Control (ACC)
Integrated Cruise Assist (ICA)
Tyre Pressure Monitoring System (TPMS)
Drive Mode Switch (Normal, ECO, Power & Offroad Mode)
Driver and Front Passenger Airbags
Front Centre Airbag
Driver and Front Passenger Side Airbags
Driver and Front Passenger Curtain Airbags
Front Seat Seat Belt Height Adjustable
Driver and Front Passenger Pre-tensioner Seatbelt
3-point seatbelt for Rear Outer Seats
Rear Middle Seat with Three Point Safety Belt
Driver Seat Belt with Alarm System
Front Passenger Seatbelt Warning Buzzer
Rear Seatbelt Warning Buzzer
Auto Lock
Door Ajar Warning Light
Smart Entry and Start System
Power Lockable Rear Tailgate
Engine Immobiliser
Child Restraint System (ISOFIX)
Child Safety Lock
Front Parking Distance Sensors
Rear Parking Distance Sensors
360°View Camera
Exterior Configurations
Cargo Protector
Black Iron Roll Bar
External Cargo Rope Hook
Tub Cargo Tie Down Hooks (4)
Roof Rails
Power Sunroof
Privacy Glass
Iron Side Steps
LED Headlamps
LED Daytime Running Lamps
LED Tail Lamps
High Mounted Stop Light
Front/Rear Fog Lamps
Headlamps Automatic Lightening
Follow Me Home Function
Intelligence High Beam Control (IHBC)
Steering Automatic Lighting
Welcome Lamps
Chrome Door Mirrors
Electrically Adjustable Side Mirrors
Heated Side Mirrors
Auto Folding Side Mirrors
Heated Rear Window
Interior Configurations
All Black Interior
Black and Brown Interior
Front Reading Light
Rear Reading Light
Sunglass Holder
Leather Bound Steering Wheel
Multifunction Steering Wheel Controls
Cruise Control
Steering Wheel Up & Down Adjust
7 Inch Color Instrument Cluster
Power Window
Remote Control of Opening/Closing windows
Automatic Up/Down+Anti-Clamp for All Widows
Automatic Anti-glare of Interior Mirror
Rain Sensing Windscreen Wipers
Climate Control Air Conditioning
Rear Vents
Leather Seats
Driver's Seat Power Adjustment
（6）Front Passenger's Seat Power Adjustment
（4）Front Seats Heating
Front Armrest
Rear Armrest with Cup Holders
Intelligent Configurations
Bluetooth Connectivity
10.4 Inch Touch Screen Entertainment System
Apple CarPlay/Android Auto Smartphone Connectivity
Front USB Port
（2）Front 12V Accessory Socket
Wireless Charging
Rear USB Port
Rear Type-C Port
Rear 220V Accessory Socket
Speakers
6
