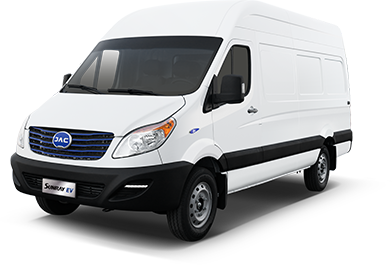

Sunray EV

Super Sunray, Super Space.

jac
Basic Information
  • Model
  • Cargo dimensions(m3)
  • Battery type
  • Chassis
  • Lithium iron phosphate battery
  • Cargo
  • 12.3
  • Lithium iron phosphate battery
  • Cargo
  • 10.5
  • Lithium iron phosphate battery
Dimension
Overall Length x Width x Height(mm)
5950*2080*2320
5990*2098*2645
5650*2098*2405
Wheelbase(mm)
3570
3570
3570
Front Overhang /Rear Overhang (mm)
965/1415
965/1455
965/1115
Tread front
1752
1752
1752
Tread rear
1760
1760
1760
Tyre specification
215/75R16C
215/75R16C
215/75R16C
Tyre single
jac
jac
jac
GVW(kg)
4100
4100
4100
Curb weight (kg)
2250
2800
2750
Cargo weight(kg)
1850
1300
1350
Powertrain Performance
Battery supplier
CATL
CATL
CATL
Battery rated voltage (V)
386.4
386.4
386.4
Working voltage range (V)
300~438
300~438
300~438
Total energy (kW.h)
77.28
77.28
77.28
Fast charge ratio(C)
1C
1C
1C
Slow charge power(kW)
6.6
6.6
6.6
GB/T charging port
jac
jac
jac
Rated / Peak power(kW)
60/110
60/110
60/110
Rated / Peak speed(rpm)
1500/4500
1500/4500
1500/4500
Rated / peak torque (N.m)
382/920
382/920
382/920
C-WTVC operating mileage (km)
280
280
280
40km/h constant speed mileage (km)
420
420
420
Max speed (km/h)
100
100
100
Maximum gradient(%)
30%
30%
30%
(0-50km/h)Acceleration performance(s)
7.5
7.5
7.5
Front disc,rear disc
jac
jac
jac
Front Suspension
Front MacPherson Independent Suspension
Front MacPherson Independent Suspension
Front MacPherson Independent Suspension
Rear Suspension
Rear Steel Spring Suspension
Rear Steel Spring Suspension
Rear Steel Spring Suspension
Minimum turning radius(m)
<7.0
<7.0
<7.0
Steering system
Hydraulic power steering
Hydraulic power steering
Hydraulic power steering
Driving mode
Front-rear-drive
Front-rear-drive
Front-rear-drive
Exterior Configurations
Blue chrome front grille
jac
jac
jac
Steel rim
jac
jac
jac
Daytime running lamp
jac
jac
jac
Side turn signal
jac
jac
jac
License plate light
jac
jac
jac
LED (High stop lamp)
jac
jac
jac
One-piece halogen eagle headlight+Electric regulation
jac
jac
jac
Bilateral+Rear double curvature light glass
jac
jac
jac
Bilateral+Rear inset blind window
jac
jac
jac
Integrated protective skirt/black
jac
jac
jac
Right side center slide door
jac
jac
jac
Back independent step
jac
jac
jac
Front and rear fenders
jac
jac
jac
External rearview mirror + Electric adjustable
jac
jac
jac
Fully covered step guard(Front door)
jac
jac
jac
Fully covered step guard(Middle door)
jac
jac
jac
Interior Configurations
6-way adjustable driver seat
jac
jac
jac
Adjustable co-pilot backrest
jac
jac
jac
Business knitted chair
jac
jac
jac
Kingpin seat layout
3
3
3
Power front window
jac
jac
jac
One handrail for the middle sliding door
jac
jac
jac
Two armrests on the rear door
jac
jac
jac
Simple reading light
jac
jac
jac
1 center top light
jac
jac
jac
1 rear overhead light
jac
jac
jac
Cigarette lighter
jac
jac
jac
Front door with storage guard
jac
jac
jac
Dashboard storage box
jac
jac
jac
Anti-dazzle interior rearview mirror
jac
jac
jac
Dashboard + 3.5-inch LCD display
jac
jac
jac
Two speakers in the front row
jac
jac
jac
Ceiling material(Substrate + flannel)
jac
jac
jac
PVC clad fiberboard side girth
jac
jac
jac
Pillar A guard plate
jac
jac
jac
Pillar B guard plate
jac
jac
jac
Upper and lower windshield guard panels
jac
jac
jac
Side window shade/sides
jac
jac
jac
Partition rear layering
jac
jac
jac
Stern sill guard plate and layering
jac
jac
jac
Stern door guard(PVC clad fiberboard)
jac
jac
jac
Flooring(Dark grey non-slip PVC+ fiberboard)
jac
jac
jac
Floor hook
jac
6
6
Safety Configurations
All metal enclosed bearing body
jac
jac
jac
Driver seat three-point belt+Unplugged prompt
jac
jac
jac
Three-point seat belts for all car seats
jac
jac
jac
Door open prompt/Tail door not included
jac
jac
jac
Airbags (driver)
jac
jac
jac
Airbags (copilot)
jac
jac
jac
Rear reversing radar
jac
jac
jac
ABS+EBD
jac
jac
jac
ESC
jac
jac
jac
EPB ( Electronic Handbrake)
jac
jac
jac
Centre control lock
jac
jac
jac
CAN bus
jac
jac
jac
IMMO electronic anti-theft module
jac
jac
jac
Speed sensing automatic lock (40km/h)
jac
jac
jac
Comfortable & Convenient
Two remote control folding keys
jac
jac
jac
Vehicle-engine interconnection
jac
jac
jac
Multifunction steering wheel(Adjust radio + cruise + meter)
jac
jac
jac
Electric Air Conditioning
jac
jac
jac
Constant displacement compressor
jac
jac
jac
4000 CAL heating and air conditioning
jac
jac
jac
Multi-angle adjustment of the air outlet
jac
jac
jac
Stern door 270° opening and limit
jac
jac
jac
External high voltage access (DC)
jac
jac
jac
ECO
jac
jac
jac
SPORT
jac
jac
jac
Energy recovery switch
jac
jac
jac
Flameout automatic unlocking
jac
jac
jac
