JAC
N-series Truck

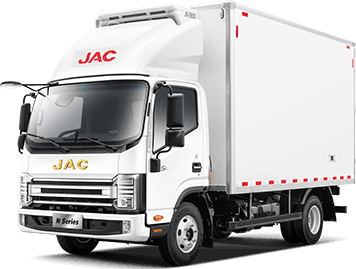

JAC N-series Truck

Born for efficiency.

jac
Basic Information
  • Model
  • Cab Type
  • GVW
  • N45
  • N Series-Single
    N Series-Double
  • 3.2～4.5T
  • N55
  • N Series-Single
    N Series-Double
  • 4.8～5.6T
  • N75
  • N Series-Single
  • 6～7.5T
  • N90
  • N Series-Single
  • 8～9T
  • N120
  • N Series-King
  • 10.5～12T
Performance
Wheelbase (mm)
2490～3365
2800～3845
3308～3845
3845～4475
3845～5700
Chassis weight(Kg)
2～2.3T
2～2.5T
2.5T-3.0T
2.8-3.4T
3.5-4.5T
Cab wide (mm)
1725
1725
1995
1995
1995/2175
Max speed(Km/h)
≥100
≥100
≥100
≥100
≥100
Max gradeability (%)
≥30
≥30
≥30
≥30
≥30
Min turning radius(m)
≤7
≤7.5
≤8
7～10.5
7.5～11
Engine
Model
2.2CTI

2.2CTI

2.7CTI

2.7CTI

3.0CTI

B4.0

B4.5

B4.0

B4.5

Displacement
2183cc

2183cc

2746cc

2746cc

2951cc

3956cc

4460cc

3956cc

4460cc

Horsepower
127ps

127ps

120ps
160ps

150ps

157ps

154ps

170ps

167ps

210ps

Clutch
Clutch assist type
Vacuum assistance、Clutch assistance
Vacuum assistance、Clutch assistance
Clutch assistance、Air assistance
Clutch assistance、Air assistance
Clutch assistance、Air assistance
Type
Dry single plate with diaphragm spring
Dry single plate with diaphragm spring
Dry single plate with diaphragm spring
Dry single plate with diaphragm spring
Dry single plate with diaphragm spring
Diameter
Φ250～Φ308
Φ250～Φ325
Φ308～Φ350
Φ350～Φ380
Φ380～Φ395
Gearbox
Model
ML532A
ML532A
ML645G/ML642A
ESO-6106/LC6T540B
C6J76T(MT)/F8JZ95CM(AMT)
Axle
Front axle
2T
2T
2.5T
3.1T
3.5T/3.8T/4.2T
Rear axle
3T
4T
5T
6.2T
7.2T/8.7T/9T
Frame
Frame section dimensions(Hf*Wf*Hf)(mm)
180*65*4.5
180*65*4.5
214*70*5
214*70*5
230*75*6 / 245*70*6
Frame width(Front/Rear)(mm)
700/750
671/700
935/850
935/850
877/865
Steering
Type
Recirculating ball-typ
Recirculating ball-typ
Recirculating ball-typ
Recirculating ball-typ
Recirculating ball-typ
Power steering
jac
jac
jac
jac
jac
Suspension
Front and rear leaf springs
Front and rear leaf springs
Front and rear leaf springs
Front and rear leaf springs
Front and rear leaf springs
Brake
Type
Hydraulic brake
Hydraulic brake
Hydraulic brake、Air brake
Air brake
Air brake
Exhaust auxiliary system
jac
jac
jac
jac
jac
Tire
Tire type
7.00R16、6.50R16
7.00R16、6.50R16、205/75R17.5
7.50R16、215/75R17.5
215/75R17.5
245/70R19.5、255/70R22.5、275/70R22.5
